Heat Shrinkable Wraparound sleeve
zoom view
Features
- Made from Cross linked polyolefin
- Shrink Ratio >3 : 1
- Quick & Easy Installation
- Excellent chemical & electrical properties
- Non-corrosive
- UV-resistant
- Continuous operating temperature: - 55°C to 120°C
- Standard Colour : Black

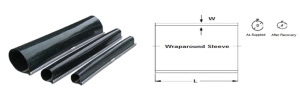

Dimensions
| Code | As Supplied (D) | After Recovery (d) | Wall Thickness (W) | Length (L) |
|---|---|---|---|---|
| CWS - 42/8 | 52 | 8 | 2.7 | 250mm |
| CWS - 53/13 | 53 | 13 | 2.7 | 250mm |
| CWS - 62/22 | 62 | 22 | 2.7 | 250mm |
| CWS - 92/30 | 92 | 30 | 2.7 | 910mm |
| CWS - 122/38 | 122 | 38 | 2.7 | 965mm |
| CWS - 140/45 | 140 | 45 | 2.7 | 1000mm |
| CWS - 160/50 | 160 | 50 | 2.7 | 1000mm |
| CWS - 210/50 | 210 | 60 | 2.7 | 1000mm |
*All dimensions are in mm
Technical Properties
| Property | Requirements | Test Method |
|---|---|---|
| Tensile strength | 8 N/mm2 (min) | ASTM D 412 / ISO 37 |
| Ultimate elongation | 200%(min) | ASTM D 412 / ISO 37 |
| Continuous Operating Temperature | -55°C to 120°C | IEC 216 |
| Minimum Shrink Temperature | 120°C | IEC 216 |
| Specific Gravity | 1.1 Max. | ASTM D 1505 / ISO 1183 |
| Dielectric Strength | 10KV/mm (min.) | ASTMD 149 / IEC 243 |
| Volume Resistivity | 1012 Ohm Cm. (min.) | ASTM 257 / IEC 93 |
| Low Temperature Flexibility | No cracking at - 20°C | ASTM D 2671 |
| Heat Shock (4 hours at 225°C) | No cracking, dripping or flowing | |
| Water Absorption | 0.2% (max.) | ASTM D 570 |
| Resistance to Fungus | Does not support growth | ASTM G 21 |
| Copper Corrosion | Non Corrosive |
