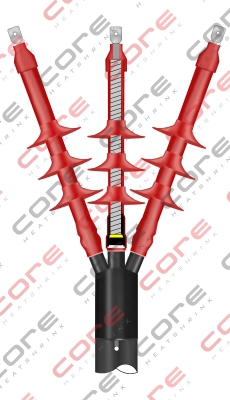

Heat Shrinkable Terminations Upto 24 kV For 3 Core PILC/MIND Cable
zoom view
Kit Series: CHT-3PI, CHT-3PO
Ordering Reference
| Cable Size (mm2) | Kit Code (Indoor) |
|---|---|
| 3 x 25-50 | 3PI - 24A |
| 3 x 70-120 | 3PI - 24B |
| 3 x 150-240 | 3PI - 24C |
| 3 x 300-400 | 3PI - 24D |
| 3 x 500 | 3PI - 24E |
• Indoor Kit does not contain Rainshed
| Cable Size (mm2) | Kit Code (Outdoor) |
|---|---|
| 3 x 25-50 | 3PO - 24A |
| 3 x 70-120 | 3PO - 24B |
| 3 x 150-240 | 3PO - 24C |
| 3 x 300-400 | 3PO - 24D |
| 3 x 500 | 3PO - 24E |
Technical Specifications
| Test Sequence | Requirements |
|---|---|
| D.C. Voltage Withstand / 15 min | 96 kV |
| A.C. Voltage Dry Withstand / 1 min | 50 kV |
| Impulse Withstand | 125 kV |
