Heat Shrinkable Bus Bar Tube is specially made from crosslinked polyolefin that will shrink to fit any rectangular, square or round aluminum/copper bus bars. On applying heat the tubing shrinks neatly over the bus bar ensuring that the minimum thickness is obtained. It is widely used in confined places where spaces are scarce.
Heat Shrinkable Bus Bar Insulation Tube
zoom view
Description
Application
- CBT is widely used in switchgear equipments and confined spaces as it needs minimum bus bar clearance and protects against accidental flashover.
- It is suitable for both indoor and outdoor use as it does not get damaged by extreme weather or ultraviolet rays.
Features
- Tested as per IEC-60332-1-2-2004 & IEC 754 PART 1
- Requires Minimum Bus Bar Clearance
- Good Thermal Emissivity
- Continous Opeating Temprature:-30°C to 130°C
- Halogen Free

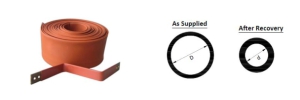

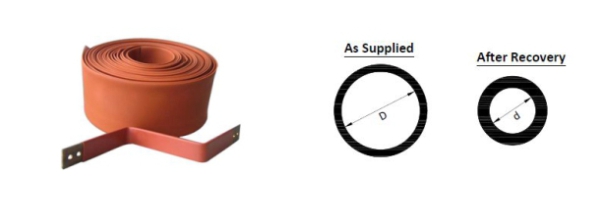

Dimensions
| Code |
(D) Internal Diameter (As Supplied) |
(d) Internal Diameter (After Recovery) |
Wall Thickness
(After Recovery) |
|---|---|---|---|
| CBT- 25/6 | 25 | 6 | 2.9-3.1 |
| CBT- 33/8 | 33 | 8 | 2.9-3.1 |
| CBT- 40/12 | 40 | 12 | 2.9-3.1 |
| CBT- 55/16 | 55 | 16 | 2.9-3.1 |
| CBT- 65/19 | 65 | 19 | 3.0-3.1 |
| CBT- 75/22 | 75 | 22 | 3.0-3.1 |
| CBT- 85/25 | 85 | 25 | 3.1-3.4 |
| CBT- 95/25 | 95 | 25 | 3.1-3.4 |
| CBT- 115/34 | 115 | 34 | 3.2-3.5 |
| CBT- 140/42 | 140 | 42 | 3.3-3.6 |
| CBT- 160/50 | 160 | 50 | 3.3-3.6 |
| CBT- 180/58 | 180 | 58 | 3.4-3.7 |
| CBT- 200/65 | 200 | 65 | 3.4-3.7 |
*All dimensions are in mm
Technical Properties
| Property | Requirements | Test Method |
|---|---|---|
| Tensile strength | ≥ 13.5 MPa | ASTM D 2671 |
| Tensile strength after aging (120° C/168 Hrs) | ≥ 10 MPa | ASTM D 2671 |
| Longitudinal shrinkage | 0 to -10% | ASTM D 2671 |
| Elongation at break | ≥ 400% | ASTM D 2671 |
| Elongation at break after aging (120° C/168 Hrs) | ≥ 250% | ASTM D 2671 |
| Dielectric Strength | ≥20KV/mm | IEC 243 |
| Dielectric constant | 4.0 | IEC 250 |
| Volume resistance | 1013 Ohm cm min. | IEC 93 |
| Flammability (oxygen index) | ≥ 25 | ASTM 4589 |
| Copper corrosion (120°C/168Hrs) | No corrosion | ASTM D 2671 |
| Cold bend(-40° C/4 Hrs) | No corrosion | ASTM D 2671 |
| Water absorption (23° C/14 days) | <0.5% | ISO 62 |
