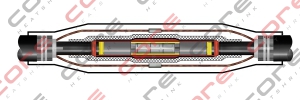

Heatshrinkable Straight Through Joints Upto 36 kV for Single Core XLPE/EPR/PVC Insulated Cable

zoom view

Kit Series: CHJ-1XS

Ordering Reference

Cable Size mm2 11 /15 KV(Kit Code)
16-50 1XS - 15A
70-120 1XS - 15B
150-300 1XS - 15C
400-630 1XS - 15D
800-1000 1XS - 15E

Cable Size mm2 22/24 kV (Kit Code)
16-50 1XS - 24A
70-120 1XS - 24B
150-300 1XS - 24C
400-630 1XS - 24D
800-1000 1XS - 24E

Cable Size mm2 33/36 kV (Kit Code)
25-50 1XS - 36A
70-185 1XS - 36B
240-500 1XS - 36C
630-800 1XS - 36D
1000 1XS - 36E

Technical specifications

Test Sequence Requirements for 15kV Requirements for 24kV Requirements for 36kV
D.C. Voltage with stand / 15 min 48 kV 96 kV 144 kV
A.C. Voltage with stand / 1 min 35 kV 50 kV 75 kV
Impulse Voltage with stand 75 kV 125 kV 170 kV
Discharge Extinction Voltage(<5pc) More than 13kV More than 25.4kV More than 38kV
