Heat Shrinkable Straight Joints Upto 36 kV for 3 Core PILC Cable

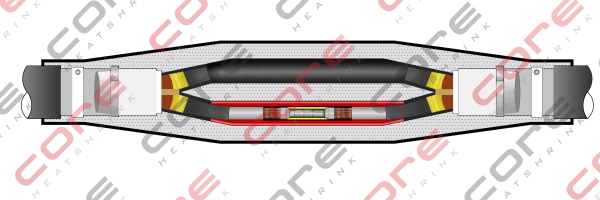

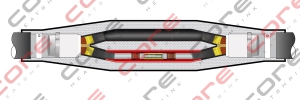

zoom view
Kit Series: CHJ-3PS
| Cable Size mm2 | 11 /15 KV(Kit Code) |
|---|---|
| 3 x 16-35 | 3PS - 15A |
| 3 x 50-95 | 3PS - 15B |
| 3 x 120-185 | 3PS - 15C |
| 3 x 240-300 | 3PS - 15D |
| 3 x 400-500 | 3PS - 15E |
| Cable Size mm2 | 22/24 kV (Kit Code) |
|---|---|
| 3 x 25 - 50 | 3PS - 24A |
| 3 x 70 - 95 | 3PS - 24B |
| 3 x 120 - 150 | 3PS - 24C |
| 3 x 185 - 240 | 3PS - 24D |
| 3 x 300 - 400 | 3PS - 24E |
| Cable Size mm2 | 33/36 kV (Kit Code) |
|---|---|
| 3 x 35 - 70 | 3PS - 36A |
| 3 x 95 - 150 | 3PS - 36B |
| 3 x 185 - 300 | 3PS - 36C |
| 3 x 400 | 3PS - 36D |
Technical specifications
| Test Sequence | Requirements for 15kV | Requirements for 24kV | Requirements for 36kV |
|---|---|---|---|
| D.C. Voltage with stand / 15 min | 48 kV | 96 kV | 144 kV |
| A.C. Voltage with stand / 1 min | 35 kV | 50 kV | 75 kV |
| Impulse Voltage with stand | 75 kV | 125 kV | 170 kV |
| Discharge Extinction Voltage(<5pc) | More than 13kV | More than 25.4kV | More than 38kV |
