Heat Shrinkable Low Voltage Breakout

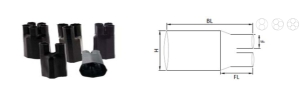

zoom view

Features

  • Made from Cross linked polyolefin
  • Excellent chemical & electrical properties
  • Halogen Free
  • UV Resistant
  • Continuous operation temperature: - 55° C to 120° C
  • Standard Colour : Black

Dimensions

Code No. of Core Bottom Diameter (H) Finger Diameter (F) BL FL BT FT
    As Supplied After Recovery As Supplied After Recovery As Supplied After Recovery As Supplied After Recovery
CLVB2C- 0410 2 30 10 12 4 70 95 18 28 2 2
CLVB3C- 0413 3 37 13 14 4 85 117 18 31 2.2 1.4
CLVB3C - 0820 3 70 22 32 8 170 180 56 56 3.2 2.5
CLVB3C -1330 3 90 30 40 10 210 230 70 80 4.5 3.0
CLVB3C -2145 3 120 42 55 18 220 225 70 80 4.5 3.0
CLVB3C -2755 3 150 52 70 26 250 255 90 95 4.2 3.0
CLVB4C -0415 4 40 18 13 4.5 86 96 19 22 2 1.9
CLVB4C -1134 4 84 32 32 9 162 217 35 46 3.5 2.6
CLVB4C -2454 4 120 40 45 14 170 220 30 48 4.5 3.3

*All dimensions are in mm
*BT- Body Thickness
*FT- Finger Thickness

Technical Properties

Property Requirements Test Method
Physical
Tensile strength 12 N/mm2 (MPA)(min.) ASTM D638
Ultimate Elongation 350% (min) ASTM D638
Density 1.05 ± 0.2 gm/cm3 ASTM D792
Hardness 45 ± 10 Shore D ASTM D2240
Water absorption 0.2 % (max) ASTM D570
Thermal
Accelerated ageing (120°C for 500 hrs) ASTM D2671
Tensile Strength 11 N/mm2 (Mpa) (min.) ASTM D 638
Ultimate Elongation 300% (min) ASTM D 638
Low Temperature Flexibility (-40°C for 4 hrs) No Cracking ASTM D2671
Heat Shock (250°C for 30 min) No cracking or flowing ESI 09-11
Shrink Temperature 125°C IEC 216
Continuous Temperature Limit -40 to + 100°C IEC 216
Electrical
Dielectric strength 12 KV/mm (min.) ASTM D149
Volume Resistivity 1 x 1014 Ohm.cm(min.) ASTM D257
Dielectric Constant 5 (max.) ASTM D150
