Heat Shrinkable Bus Bar Tape is specially formulated, cross linked, flame retardant tape which shrinks and fits to any regular or irregular surface as it can be wrapped around any shaped bus bar. It is used where bus bar tubings cannot be installed.

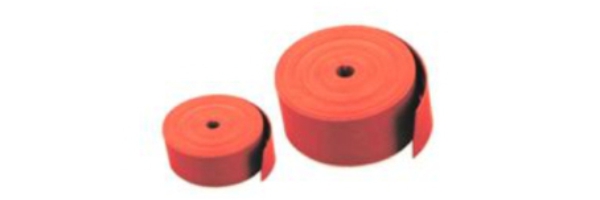

Heat Shrinkable Bus Bar Insulation Tape
zoom view
Description
Application
- Heatshrinkable Bus bar tape offers simple and effective solutions to bus bar which are fixed and cannot be dismantled. It can be used for both indoor and outdoor sites and is easily installed over regular & irregular shapes including complex connections.
- It is widely used in switchgear equipments and substations to avoid accidental flashover and furthermore, it reduces the toxic and obnoxious gas release in event of fire.
Features
- Tested as per IEC-60332-1-2-2004 & IEC 754 PART 1
- Avoids Accidental Flashover
- Halogen Free
- Continous Opeating Temprature:-30°C to 130°C
Dimensions
| Code | As Supplied Width (mm) | Recovered Thickness (mm) | Standard Length (M) |
|---|---|---|---|
| CBIT-1 | 25 | 1 | 5 or 10 |
| CBIT-2 | 50 | 1 | 5 or 10 |
Technical Properties
| Property | Requirements | Test Method |
|---|---|---|
| Tensile strength | ≥ 11.8 MPa | ASTM D 2671 |
| Tensile strength after aging (120°C/168 Hrs) | ≥ 10 MPa | ASTM D 2671 |
| Longitudinal Shrinkage | 0 to -10% | ASTM D 2671 |
| Elongation at break | ≥ 700% | ASTM D 2671 |
|
Elongation at break after aging (120°C/168 Hrs) |
≥ 500% | ASTM D 2671 |
| Dielectric Strength | ≥20Kv/mm | IEC 243 |
| Dielectric constant | 4.0 | IEC 250 |
| Volume resistance | 1013 Ohm cm min. | IEC 93 |
| Flammability (oxygen index) | ≥ 25 | ASTM 4589 |
| Copper corrosion(120°C/168Hrs) | No corrosion | ASTM D 2671 |
| Cold bend(-40°C/4 Hrs) | No corrosion | ASTM D 2671 |
| Water absorption (23°C/14 days) | <0.5% | ISO 62 |
