Heat Shrinkable Stress Control Tube
zoom view
Features
- CSCT is made from special cross-linked polymer
- CSCT reduces high electrical stress present at the end of semi-con screen of the cable in termination
- CSCT reduces high electrical stress present near screen cut section in joints
- Minimum shrink temperature: 100°C
- Minimum fully recovered temperature:130°C
- Standard Color: Black

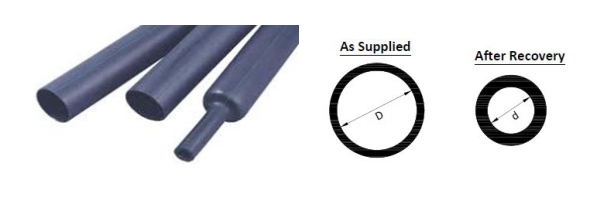

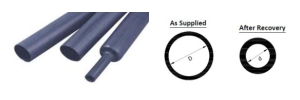

Dimensions
| Code |
(D) Internal Diameter (As Supplied) |
(d) Internal Diameter (After Recovery) |
Wall Thickness
(After Recovery) |
|---|---|---|---|
| CSCT - 30/13 | 30 | 13 | 2.6 |
| CSCT - 40/19 | 40 | 19 | 2.6 |
| CSCT - 50/25 | 50 | 25 | 3.0 |
| CSCT - 60/29 | 60 | 29 | 3.0 |
*All dimensions are in mm
Technical Properties
| Property | Requirements | Test Method |
|---|---|---|
| Operating temperature | -40°C to 100°C | IEC 216 |
| Tensile strength | ≥ 12 MPa | ASTM-D-638 |
| Elongation at break | ≥ 300% | ASTM-D-638 |
| Tensile strength after aging | ≥10MPa | ASTM-D-2671/120°C,168hrs |
| Elongation at break after aging | ≥ 210% | ASTM-D-2671/120°C,168hrs |
| Volume resistance | 1013~14 Ohm cm min. | IEC 93 |
| Dielectric constant | >15 | IEC 250 |
| Longitudinal shrinkage | ≤10% | |
| Eccentricity | ≤30% | ASTM-D-267 |
| Water absorption | ≤0.1% | ISO 62 |
