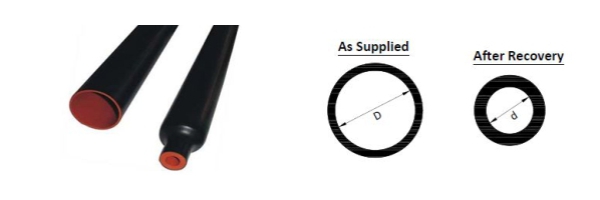

Heat Shrinkable Dual Wall Tubing
zoom view
Features
- The external layer (Black Colour) is made from semi-conductive material for electric shielding
- The inner layer (Red Colour) is made from insulated material for good insulation
- Suitable for applications up to 36 KV
- Minimum shrink temperature: 110°C
- Minimum fully recovered temperature:130°C
Dimensions
| Code |
(D) Internal Diameter (As Supplied) |
(d) Internal Diameter (After Recovery) |
Wall Thickness
(After Recovery) |
|---|---|---|---|
| CDWT - 35/12 | 35 | 12 | 6.0 |
| CDWT - 45/15 | 45 | 15 | 6.0 |
| CDWT - 55/18 | 55 | 18 | 6.0 |
| CDWT - 65/25 | 65 | 25 | 6.5 |
| CDWT - 85/30 | 85 | 30 | 6.5 |
| CDWT -100/38 | 100 | 38 | 6.5 |
| CDWT -120/45 | 120 | 45 | 7.0 |
| CDWT -140/50 | 140 | 50 | 7.0 |
*All dimensions are in mm
