Heat Shrinkable Straight Joints Upto 36 kV For 3 CORE XLPE/EPR Insulating Cables

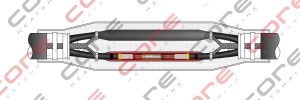

zoom view

Kit Series: CHJ-3XS

Ordering Reference

Cable Size mm2 11/15 kV (Kit Code)
3 x 16 - 50 3XS - 15A
3 x 70 - 95 3XS - 15B
3 x 120 - 185 3XS - 15C
3 x 240 - 300 3XS - 15D
3 x 400 - 500 3XS - 15E

Cable Size mm2 22/24 kV (Kit Code)
3 x 25 - 50 3XS - 24A
3 x 70 - 95 3XS - 24B
3 x 120 - 150 3XS - 24C
3 x 185 - 240 3XS - 24D
3 x 300 - 400 3XS - 24E

Cable Size mm2 33/36 kV (Kit Code)
3 x 35 - 70 3XS - 36A
3 x 95 - 150 3XS - 36B
3 x 185 - 300 3XS - 36C
3 x 400 3XS - 36D

Technical specifications

Test Sequence Requirements for 15kV Requirements for 24kV Requirements for 36kV
D.C. Voltage with stand / 15 min 48 kV 96 kV 144 kV
A.C. Voltage with stand / 1 min 35 kV 50 kV 75 kV
Impulse Voltage with stand 75 kV 125 kV 170 kV
Discharge Extinction Voltage(<5pc) More than 13kV More than 25.4kV More than 38kV
