- Made from cross linked polyolefin
- Non Tracking
- Excellent chemical & electrical properties
- High Tensile strength
- Non-corrosive
- UV-resistant, Excellent environmental protection
- Operating temperature: -55 °C to 125 °C
- Standard Colour : Red

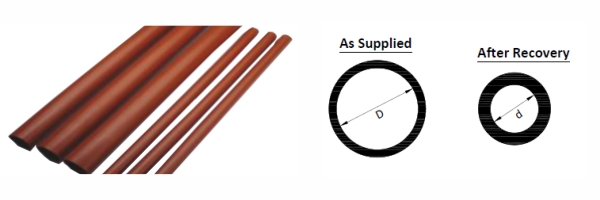

Heat Shrinkable Anti Tracking Tubing
zoom view
Features
Dimensions
| Code |
(D) Internal Diameter (As Supplied) |
(d)
Internal Diameter (After Recovery) |
Wall Thickness (After Recovery) |
|---|---|---|---|
| CATT -25/6 | 25 | 6 | 2.9-3.1 |
| CATT -33/8 | 33 | 8 | 2.9-3.1 |
| CATT -40/12 | 40 | 12 | 2.9-3.1 |
| CATT -55/16 | 55 | 16 | 2.9-3.1 |
| CATT -65/19 | 65 | 19 | 3.0-3.1 |
| CATT -75/22 | 75 | 22 | 3.0-3.1 |
| CATT -85/25 | 85 | 25 | 3.1-3.4 |
| CATT -95/25 | 95 | 25 | 3.1-3.4 |
| CATT -115/34 | 115 | 34 | 3.2-3.5 |
| CATT -140/42 | 140 | 42 | 3.3-3.6 |
*All dimensions are in mm
Technical Properties
| Property | Requirements | Test Method |
|---|---|---|
| Tensile strength | ≥ 13.5 MPa | ASTM D 2671 |
| Tensile strength after aging (150°C/168 Hrs) | ≥ 10 MPa | ASTM D 2671 |
| Longitudinal shrinkage | 0 to -10% | ASTM D 2671 |
| Elongation at break | ≥ 400% | ASTM D 2671 |
| Elongation at break after aging (120°C/168 Hrs) | ≥ 250% | ASTM D 2671 |
| Dielectric Strength | ≥20Kv/mm | IEC 243 |
| Dielectric constant | 4.0 | IEC 250 |
| Volume resistance | 1013 Ohm cm min. | IEC 93 |
| Flammability (oxygen index) | ≥ 25 | ASTM 4589 |
| Copper corrosion (120°C/168Hrs) | No corrosion | ASTM D 2671 |
| Cold bend (-40°C/4 Hrs) | No corrosion | ASTM D 2671 |
| Water absorption (23°C/14 days) | <0.5% | ISO 62 |
