Heat Shrinkable Rainshed
zoom view
Features
- Designed to extend creepage distance, thereby saving the length of the cable and tubings
- Made from Cross Linked Polyolefin
- Suitable for applications up to 36 KV
- Continuous operation temperature: -55°C to 120°C
Dimensions

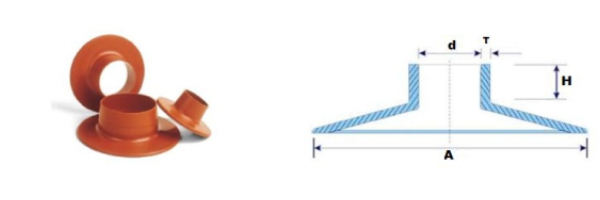

| Code | A | d | d | H | T |
|---|---|---|---|---|---|
| As Supplied | After Recovery | (min) | |||
| CIRS - 825 | 79 | 30 | 8 | 18 | 2.5 |
| CIRS-1330 | 88 | 38 | 11 | 23 | 2.5 |
| CIRS-2145 | 121 | 56 | 20 | 30 | 2.8 |
| CIRS-2755 | 136 | 72 | 26 | 40 | 3.0 |
Technical Properties
| Property | Requirements | Test Method |
|---|---|---|
| Physical | ||
| Tensile strength | 12 N/mm (Mpa) (min) | ASTM D638 |
| Ultimate Elongation | 350% (min) | ASTM D638 |
| Density | 1.15 ± 0.2 gm/cm | ASTM D792 |
| Hardness | 45 ± 10 Shore D | ASTM D2240 |
| Water absorption | 0.5 % (max) | ASTM D570 |
| Thermal | ||
| Accelerated ageing | (120°C for 500 hrs) | ASTM D2671 |
| Tensile Strength | 11 N/mm2 (Mpa) (min.) | ASTM D 638 |
| Ultimate Elongation | 300% (min) | ASTM D 638 |
| Low Temperature Flexibility (-40°C for 4 hrs) | No Cracking | ASTM D2671 |
| Heat Shock (250°C for 30 min) | No cracking or flowing | ESI 09-11 |
| Shrink Temperature | 125°C | IEC 216 |
| Continuous Temperature Limit | -40 to +100°C | IEC 216 |
| Electrical | ||
| Dielectric strength | 12 KV/mm (min.) | ASTM D149 |
| Volume Resistivity | 1 x 10 ohm. cm (min) | ASTM D257 |
| Dielectric Constant | 5 (max.) | ASTM D150 |
| Resistant To Track & Erosion | No tracking, erosion or flame failure upto 3.25 KV for 20 min. | ASTM D2303 |
