Heat Shrinkable Semi Conductive Breakout

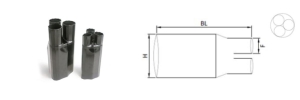

zoom view
Features
- Made from Cross Linked Polyolefin & Conductive Carbon Black
- Suitable up to 36 KV
- Provides semi-conductive screen to the cable core
- UV Resistant
- Standard Color : Black
Dimensions
| Code | Breakout Bottom Diameter | Finger Diameter | ||
|---|---|---|---|---|
| H | H | F | F | |
| As Supplied | After Recovery | As Supplied | After Recovery | |
| CSCB - 820 | 55 | 20 | 25 | 8 |
| CSCB-1330 | 80 | 30 | 36 | 13 |
| CSCB-2145 | 110 | 45 | 55 | 20 |
| CSCB-2755 | 140 | 56 | 70 | 28 |
*All dimensions are in mm
*H- Breakout Main Diameter
*F- Finger Diameter
Technical Properties
| Property | Requirements | Test Method |
|---|---|---|
| Physical | ||
| Tensile strength | 12 N/mm2 (MPA)(Min.) | ASTM D638 |
| Ultimate Elongation | 300% (min) | ASTM D638 |
| Density | 1.15 ± 0.2 gm/cm3 | ASTM D792 |
| Hardness | 45 ± 10 Shore D | ASTM D2240 |
| Water absorption | 0.5 % (max) | ASTM D570 |
| Thermal | ||
| Accelerated ageing | (120°C for 500 hrs) | ASTM D2671 |
| Tensile Strength | 11 N/mm2 (Mpa) (min.) | ASTM D 638 |
| Ultimate Elongation | 250% (min) | ASTM D 638 |
| Heat Shock (250°C for 30 min) | No cracking or following | ESI 09-11 |
| Shrink Temperature | 125°C | IEC 216 |
| Continuous Temperature Limit | -40°C to + 100°C | IEC 216 |
| Electrical | ||
| Volume Resistivity | 1 x 107Ohm.cm(min.) | ASTM D257 |
