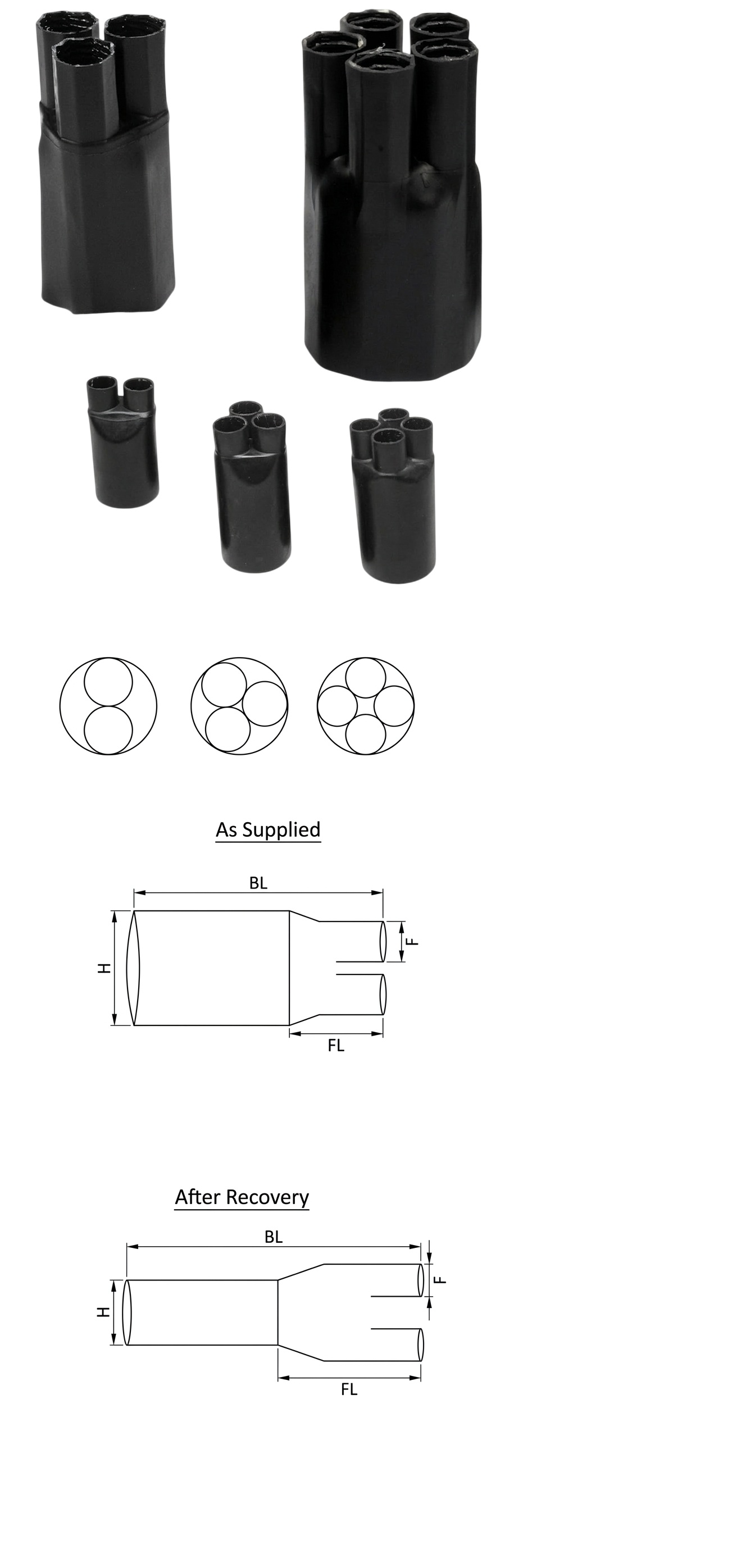

Heat-Shrinkable Low Voltage Cable Breakouts

Superior Protection for Multi-Core Terminations

Ensure the integrity of your electrical connections with our heavy-duty, adhesive-lined Heat-Shrinkable Breakouts. Designed specifically for 2, 3, 4, and 5-core low voltage cables, these breakouts provide a permanent environmental seal and robust mechanical protection at the point of cable branching.

Key Features & Benefits.

Superior Environmental Sealing: Internally coated with high-performance hot-melt adhesive that melts during installation to create a moisture-proof barrier.

High Mechanical Strength: Manufactured from cross-linked polyolefin to resist abrasion, impact, and UV radiation.

Electrical Insulation: Rated for low voltage applications (up to 1kV), providing excellent dielectric strength.

Universal Compatibility: Fits a wide range of cable diameters and materials (PVC, XLPE, and PILC).

Chemical Resistance: Protects against common solvents, acids, and alkaline environments.

Product Range & Specifications.

Our breakouts are available in configurations to suit any standard multi-core cable setup:

Configuration	Typical Application
2-Core	Single-phase systems with neutral or DC power lines.
3-Core	Three-phase industrial power and motor connections.
4-Core	Three-phase systems with a dedicated neutral line.
5-Core	Complex power distribution requiring separate Neutral and Earth (SNE).

Simple Installation Process.

Preparation: Clean the cable jacket and individual cores to ensure proper adhesive bonding.

Positioning: Slide the breakout boot over the exposed cores until it rests firmly against the cable crotch.

Heating: Using a standard heat gun or soft-flame torch, start shrinking from the center (the body) and move outward toward the "fingers."

Completion: The breakout is correctly installed when the adhesive is seen extruding slightly from the ends, indicating a complete seal.
