SAFE. RELIABLE. EFFECTIVE.
High-Voltage Protection & Flashover Prevention

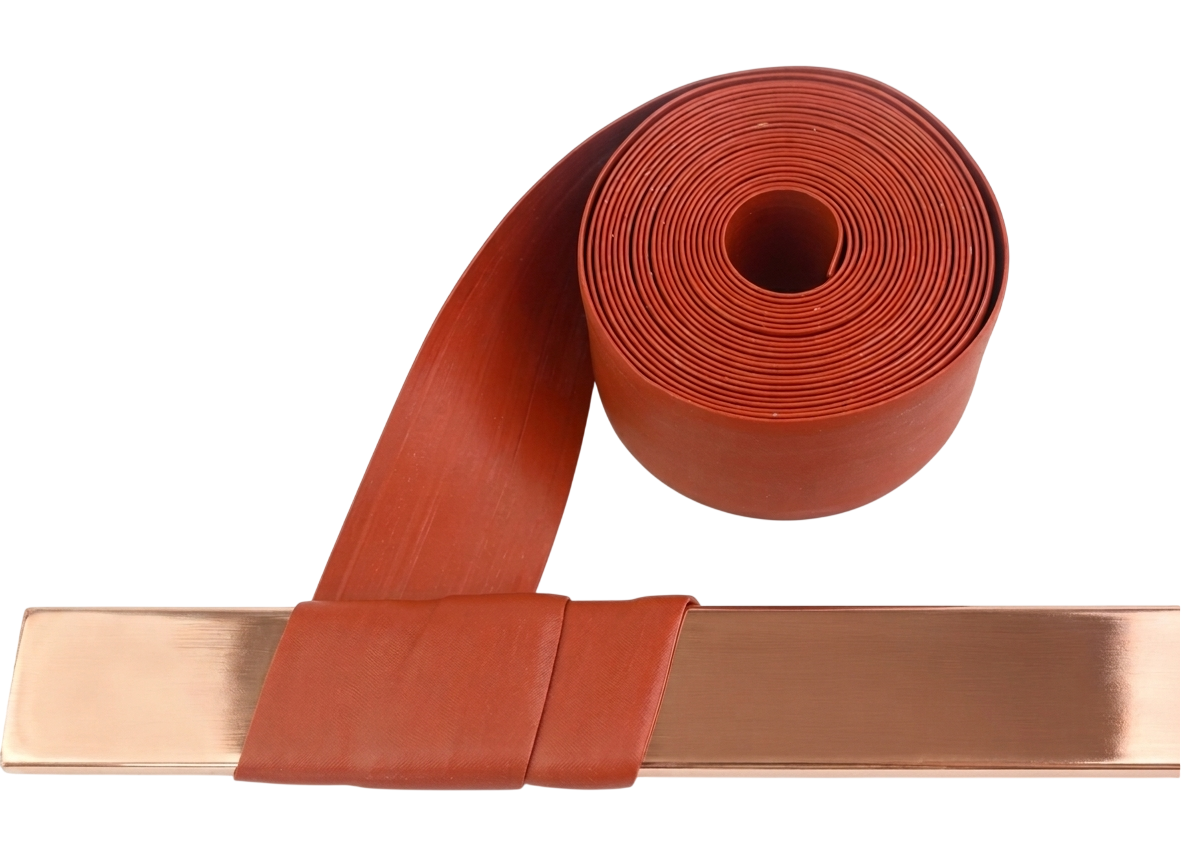

BRENT Bus-Bar Tape is a high-performance, heat-shrinkable adhesive-lined tape designed specifically for the insulation and protection of complex bus-bar geometries. It offers a flexible alternative to heat-shrink tubing, especially where existing connections cannot be dismantled.
Our tape is engineered to provide a cross-linked, non-tracking insulation layer that significantly reduces the clearance requirements between bus-bars.
Flashover Protection: Prevents accidental discharge caused by vermin, humidity, or dust.
Retrofit Friendly: Ideal for insulating existing installations without dismantling bolts or connectors.
Contoured Fit: Easily wraps around elbows, T-joints, and complex bolted connections.
Cross-linked Polyolefin: High thermal stability and resistance to chemical solvents.
Adhesive Lining: The inner layer of hot-melt adhesive melts during shrinking, ensuring a moisture-proof, permanent seal.
Flame Retardant: Self-extinguishing properties for enhanced safety in switchgear cabinets.
UV Resistant: Suitable for both indoor and outdoor applications.
Ordering Reference
| Code | As Supplied Width (mm) | Recovered Thickness (mm) | Standard Length (M) |
| BBT-1 | 25 | 1 | 5 or 10 |
| BBT-2 | 50 | 1 | 5 or 10 |
Technical Specifications
| Property | Requirements | Test Method |
| Tensile strength | ≥ 11.8 MPa | ASTM D 2671 |
| Tensile strength after aging (120°C/168 Hrs) | ≥ 10 MPa | ASTM D 2671 |
| Longitudinal Shrinkage | 0 to -10% | ASTM D 2671 |
| Elongation at break | ≥ 700% | ASTM D 2671 |
| Elongation at break after aging (120°C/168 Hrs) | ≥ 500% | ASTM D 2671 |
| Dielectric Strength | ≥20Kv/mm | IEC 243 |
| Dielectric constant | 4.0 | IEC 250 |
| Volume resistance | 1013 Ohm cm min. | IEC 93 |
| Flammability (oxygen index) | ≥ 25 | ASTM 4589 |
| Copper corrosion(120°C/168Hrs) | No corrosion | ASTM D 2671 |
| Cold bend(-40°C/4 Hrs) | No corrosion | ASTM D 2671 |
| Water absorption (23°C/14 days) | <0.5% | ISO 62 |
